CVN-70 USS Carl Vinson / CVW-15
“The Cold War: Snapshot of a Supercarrier” |
Photographic Essay APA-PE-2010-0801 by Dr Carlo Kopp August, 2010 Text © 2010 Carlo Kopp Photographic and lineart images © 1984 - 2010 Carlo Kopp |

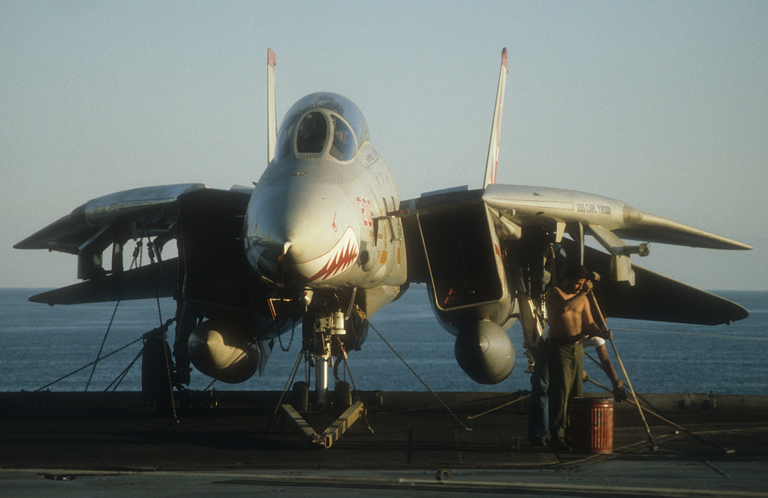

Grumman F-14A Tomcat #206 of VF-111 in low visibility camouflage, but with full colour unit livery. |
The CVN-70 USS Carl Vinson is the third of the Nimitz class nuclear powered “Supercarriers”. It was commissioned in 1982. Since then it has embarked CVW-3, CVW-8, CVW-9, CVW-11, CVW-14, and CVW-15, and been homeported at NAS Alameda near San Francisco, Bremerton / Puget Sound near Seattle, and NAS North Island near San Diego. A Pacific home ported carrier, the Vinson has been frequently deployed into the Indian Ocean, and participated in Operations Southern Watch and Desert Strike. Its greatest combat achievement to date was its 72 day sustained effort during the late 2001 bombing of Al Qaeda and Taliban ground forces in Afghanistan, as part of Operation Enduring Freedom, embarking CVW-11. Most of the imagery in this photoessay was produced by the author in late 1984, during the USS Carl Vinson's first visit to Fremantle. Additional imagery was produced during a subsequent visit. Notes:
|
CVN-70
USS
Carl
Vinson |

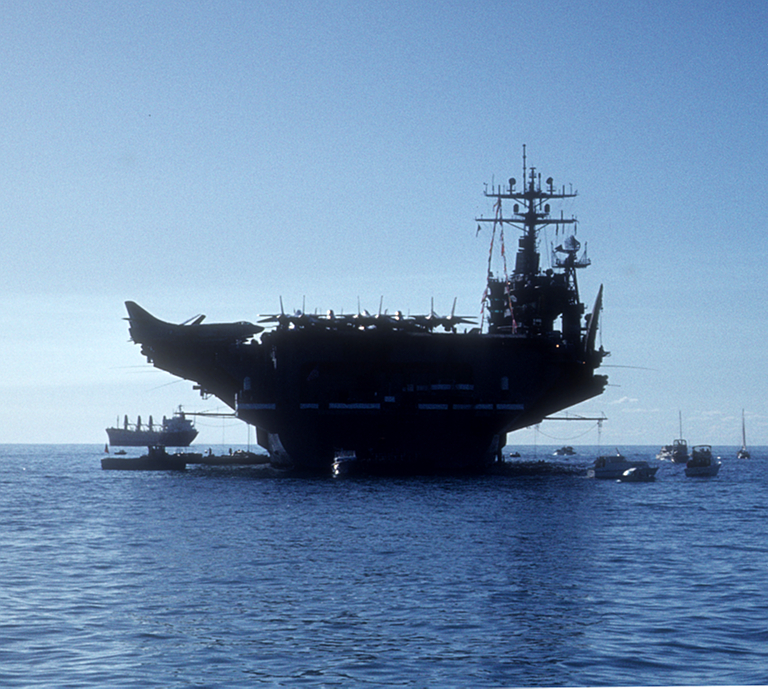

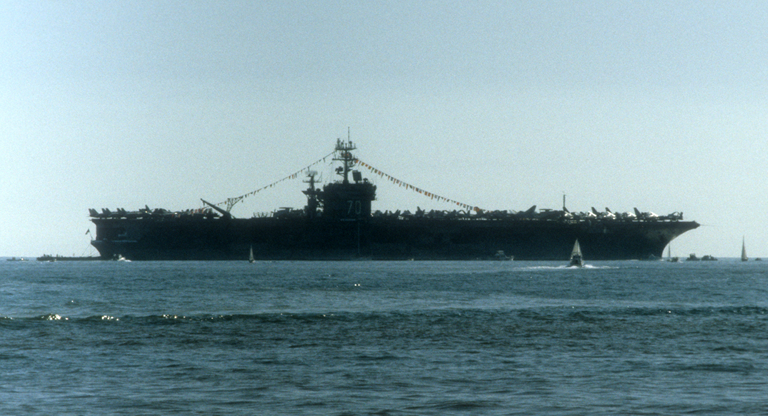

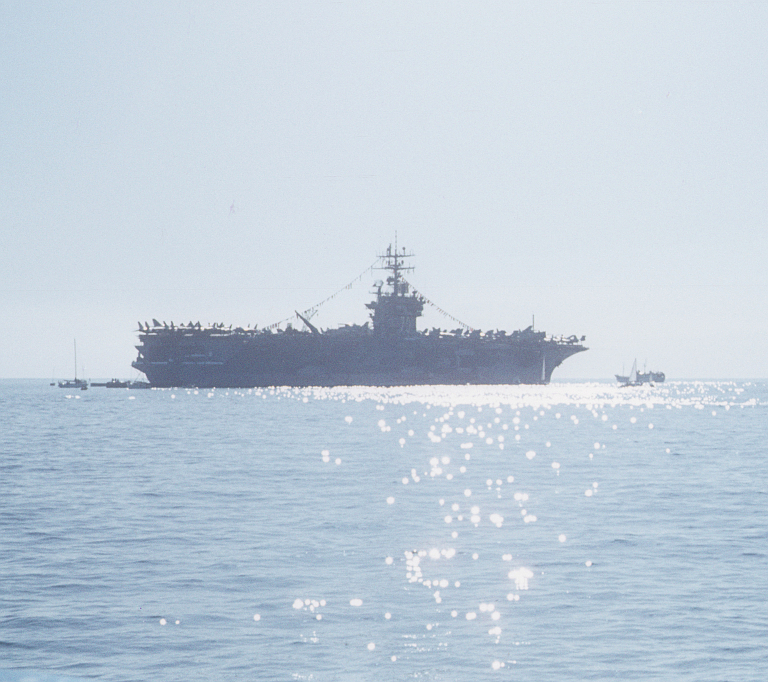

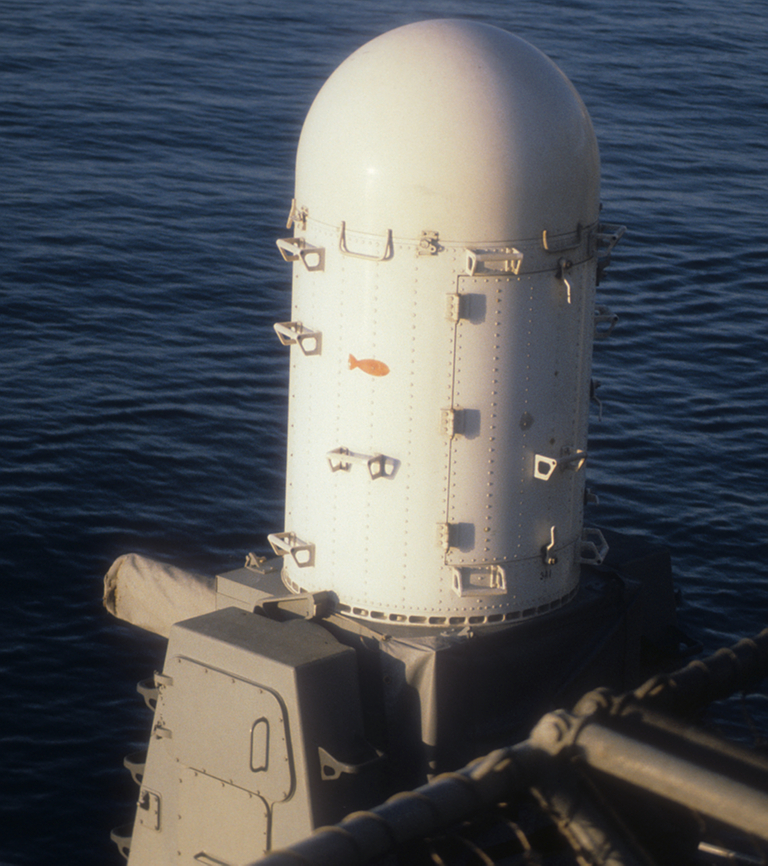

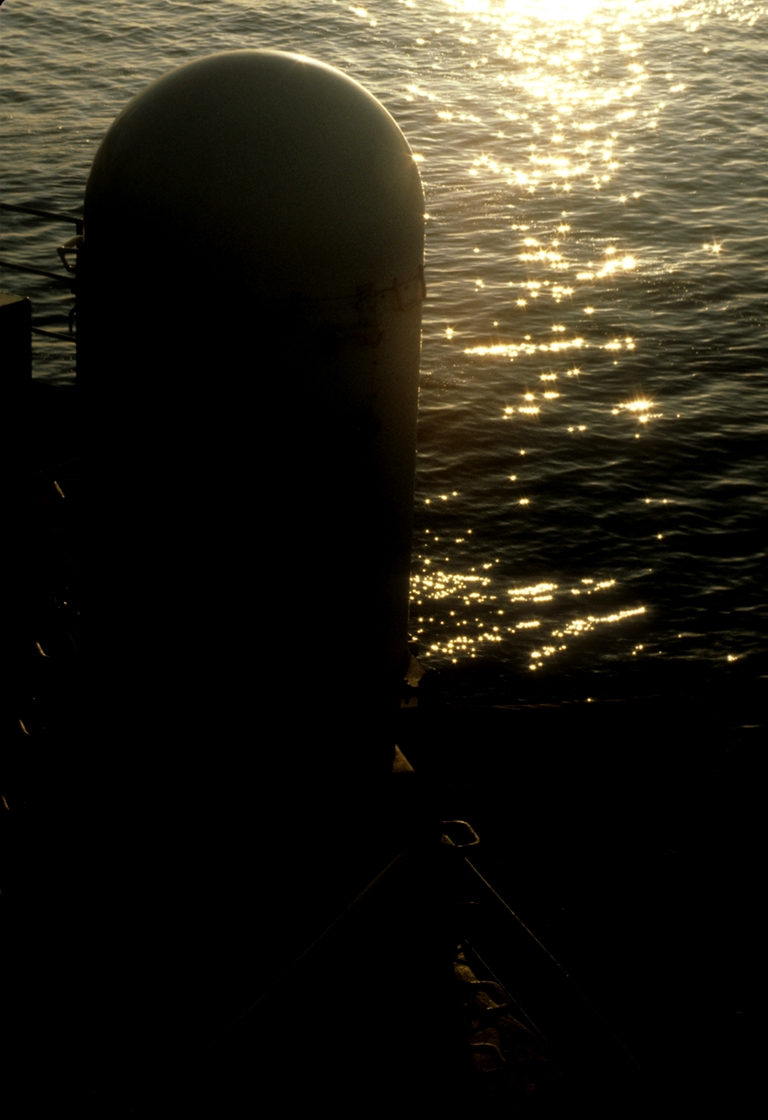

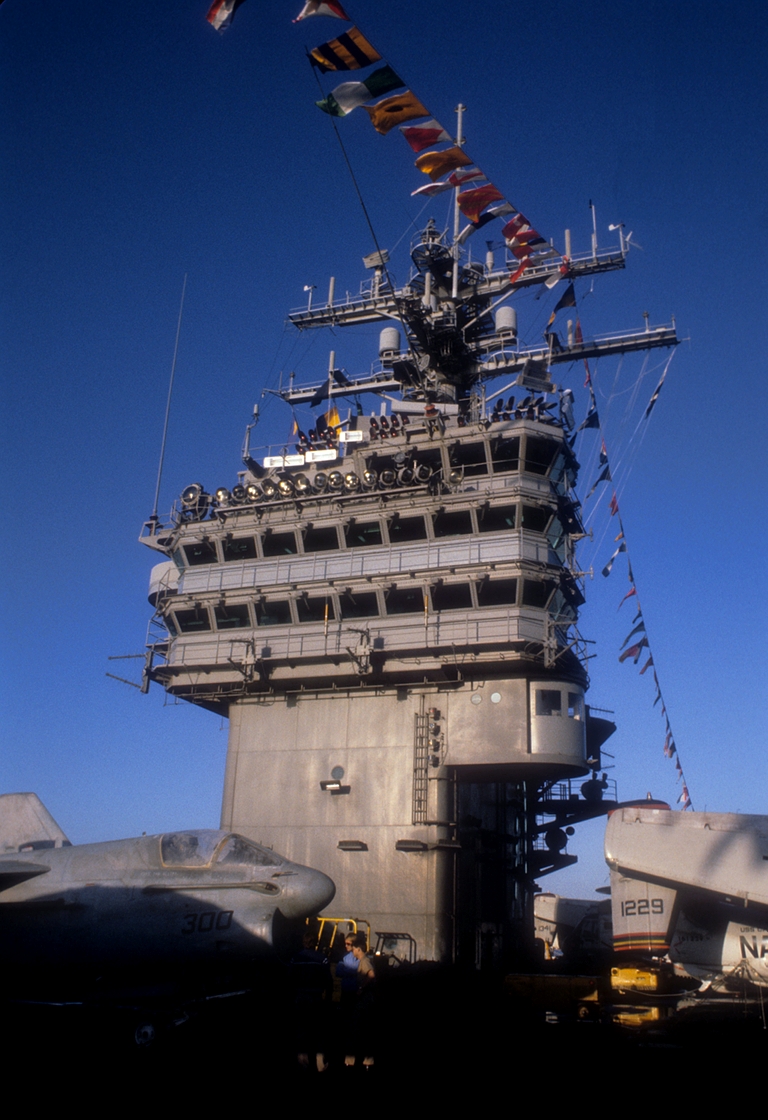

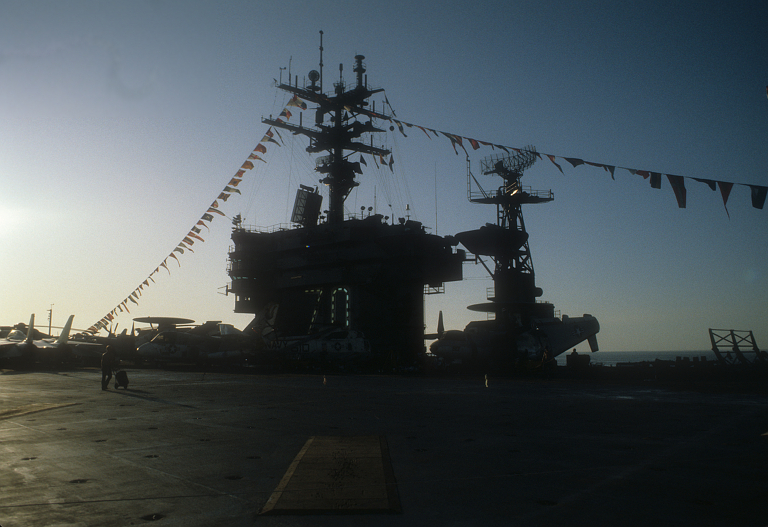

CVN-70 USS Carl Vinson anchored off Fremantle in December, 1984. CVN-70 USS Carl Vinson anchored off Fremantle in December, 1984. CVN-70 USS Carl Vinson anchored off Fremantle in December, 1984. Superstructure, CVN-70 USS Carl Vinson anchored off Fremantle in December, 1984. Above, below, Phalanx CIWS on CVN-70 USS Carl Vinson. CVN-70
USS Carl Vinson

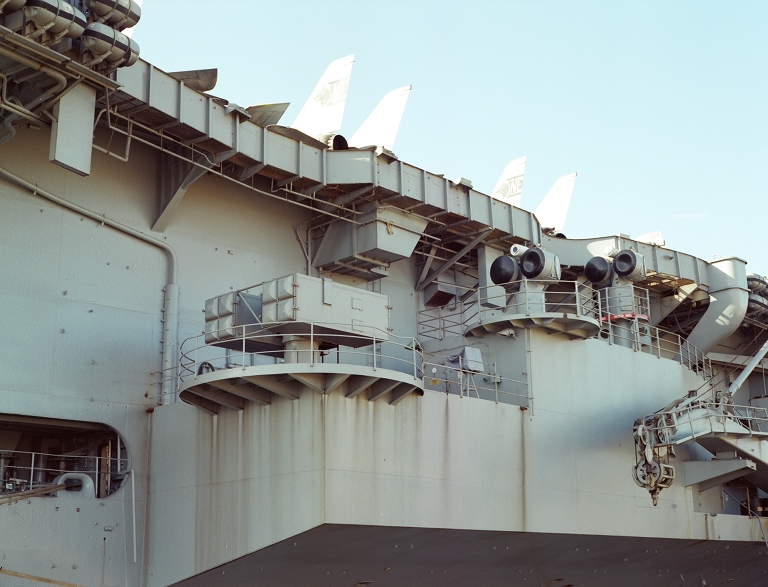

Mk.29 RIM-7H/M Sea Sparrow launcher and a
pair of Mk.95 CW illuminators, photographed during a much later
deployment with CVW-3 (Author
using
M645/1000S
Sekor
C
80 mm).
|
CVBG
Escorts |

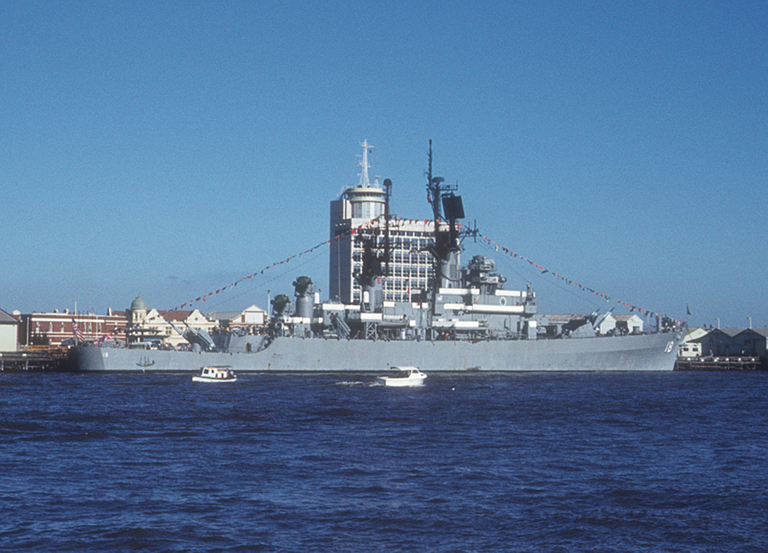

The CG-18 USS Worden, a Leahy class AAW
cruiser employed to provide area defence for the CVBG, during the
1984/1985 deployment.
Above,
below:
Forward
RIM-67B/C
Standard
SM-2ER
semi-active homing long range

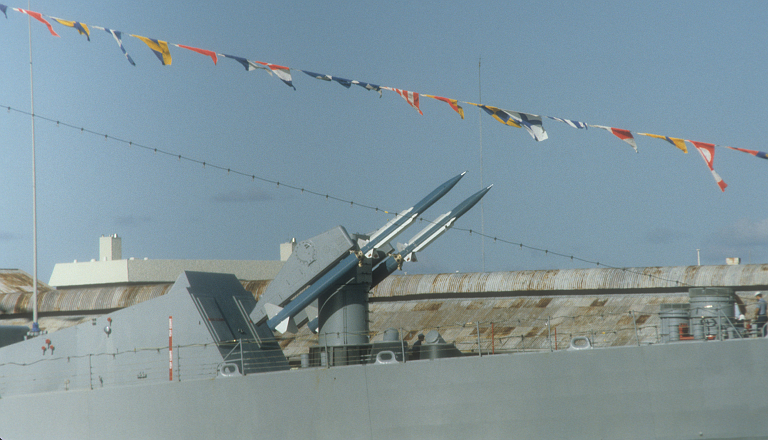

SAM Mk.10 launchers.

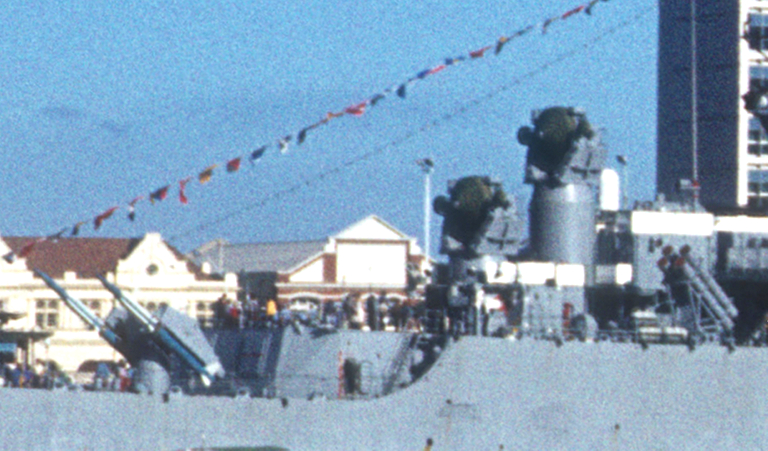

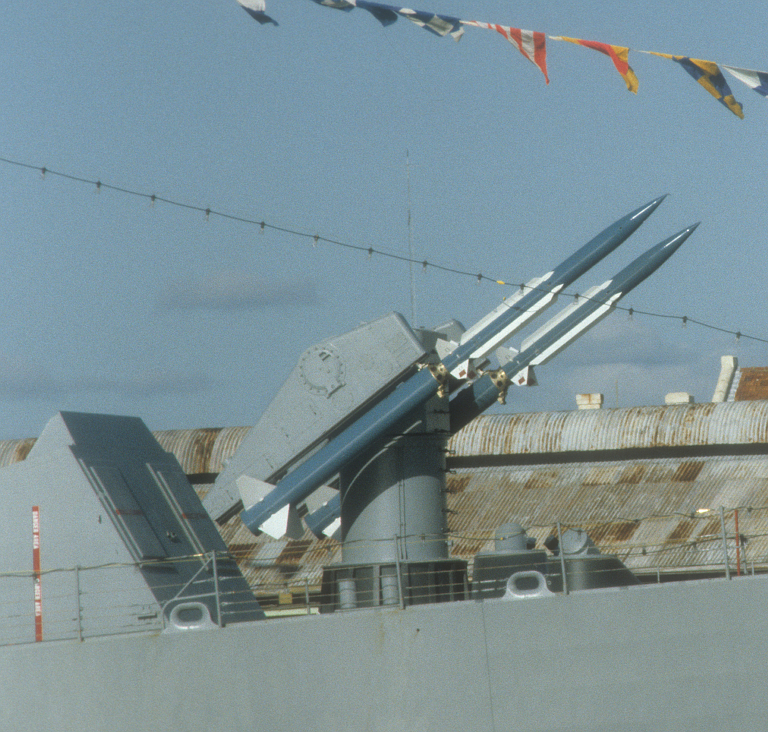

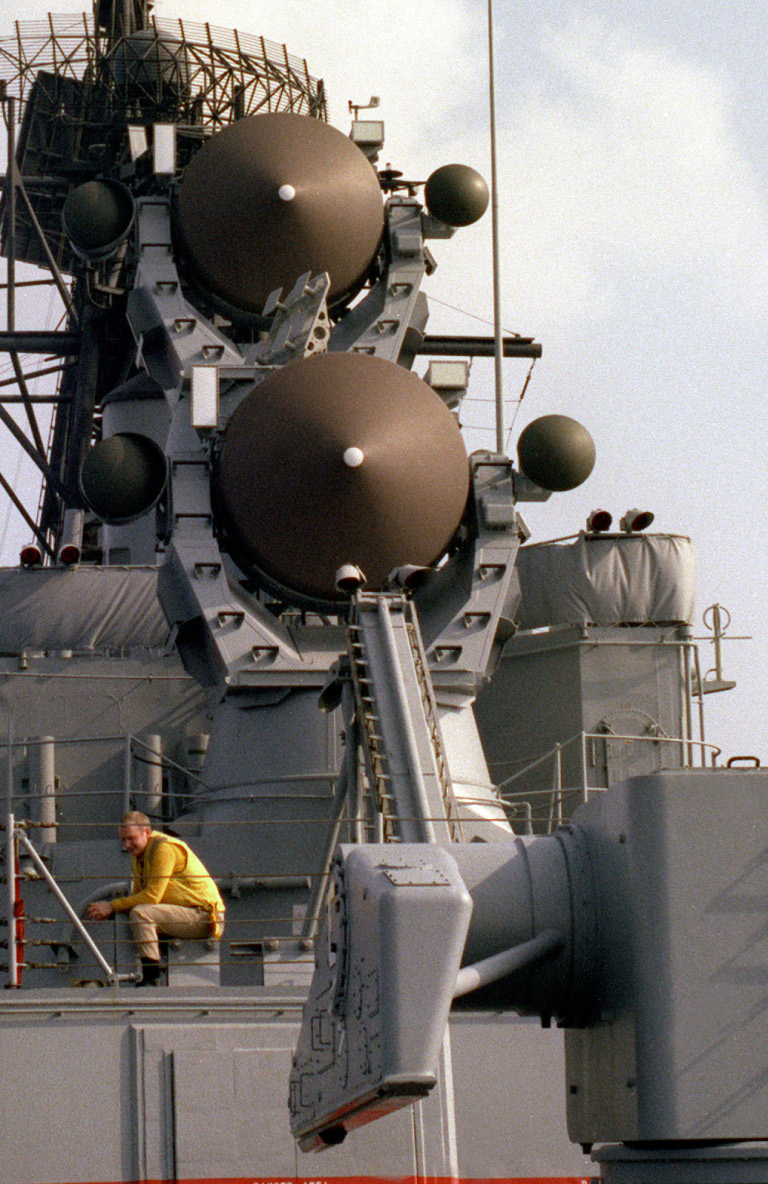

View of aft RIM-67B/C Mk.10 launchers, and
AN/SPG-55B long range tracking and illumination radar antennas.

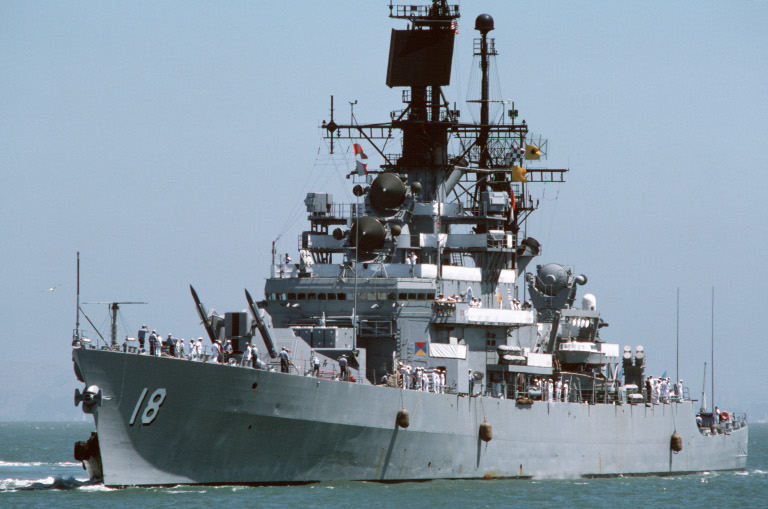

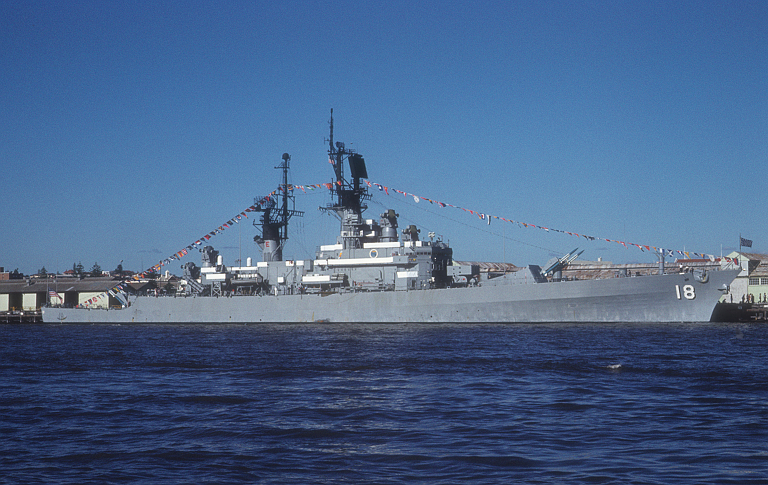

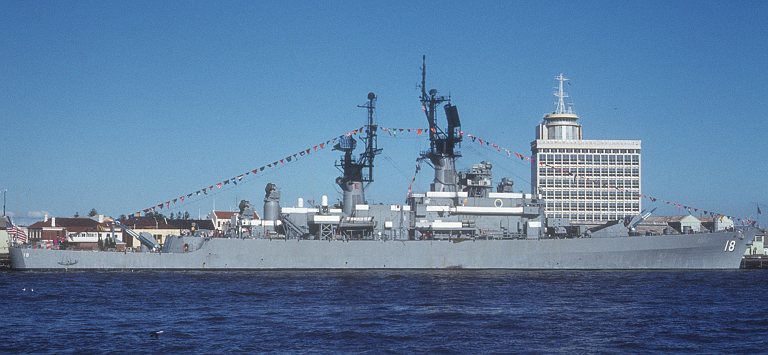

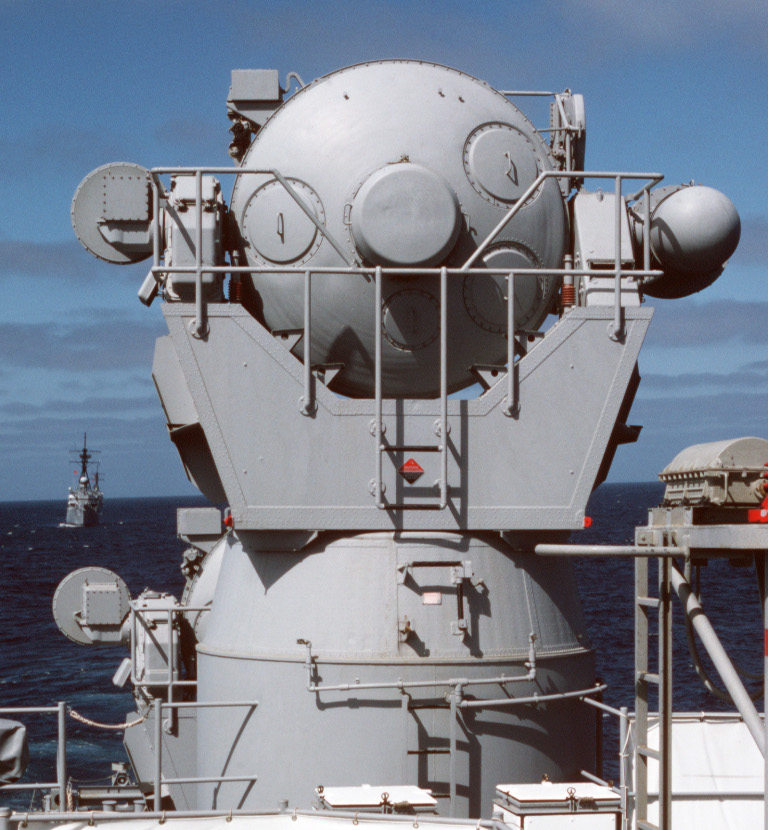

Detail of AN/SPG-55B long range tracking and illumination radar antennas (US Navy). CG-18 USS Worden (US Navy).

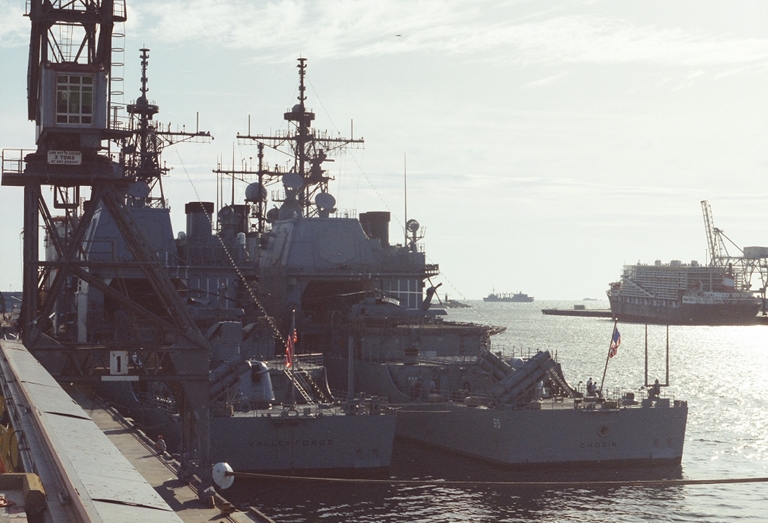

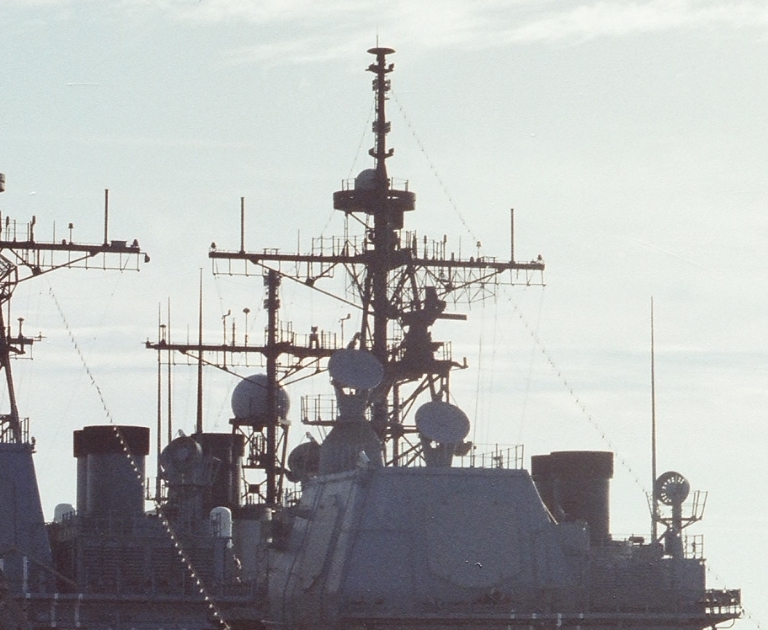

The CG-50 Valley Forge and CG-65 Chosin
Ticonderoga class cruisers during a much later deployment (Author using
M645/1000S Sekor C 80 mm).

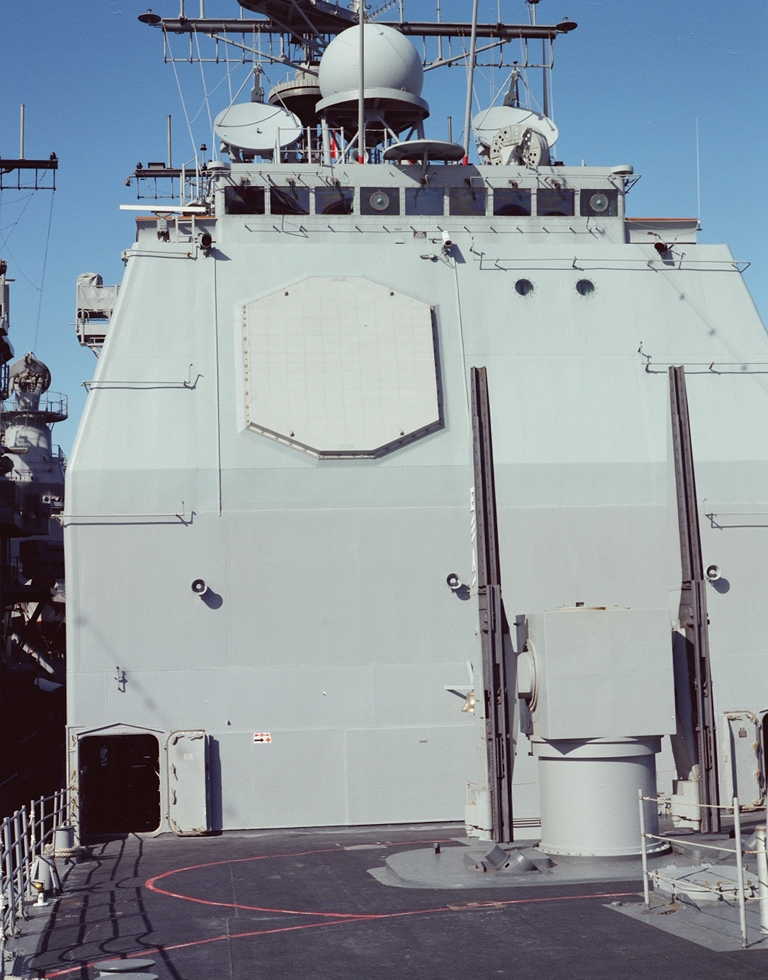

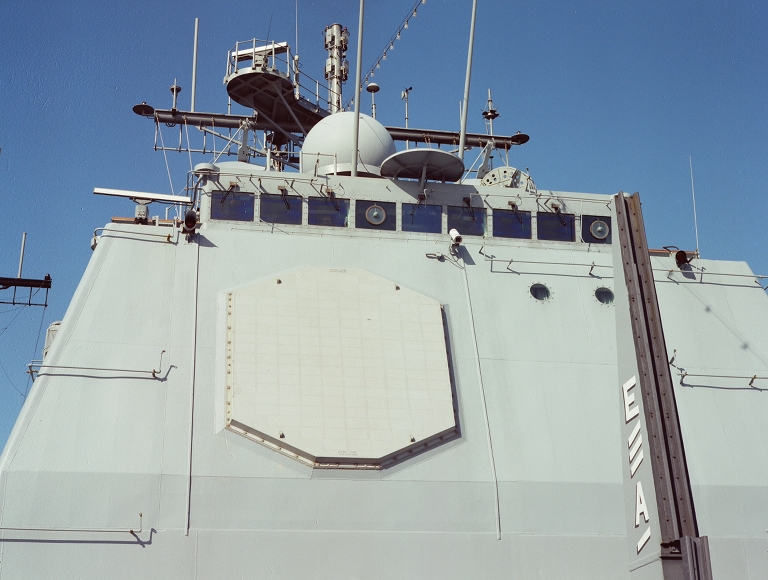

CG-50 Valley Forge SPY-1 Aegis ESA. Note
the subarray edges visible on this image (Author using M645/1000S Sekor C 80 mm).

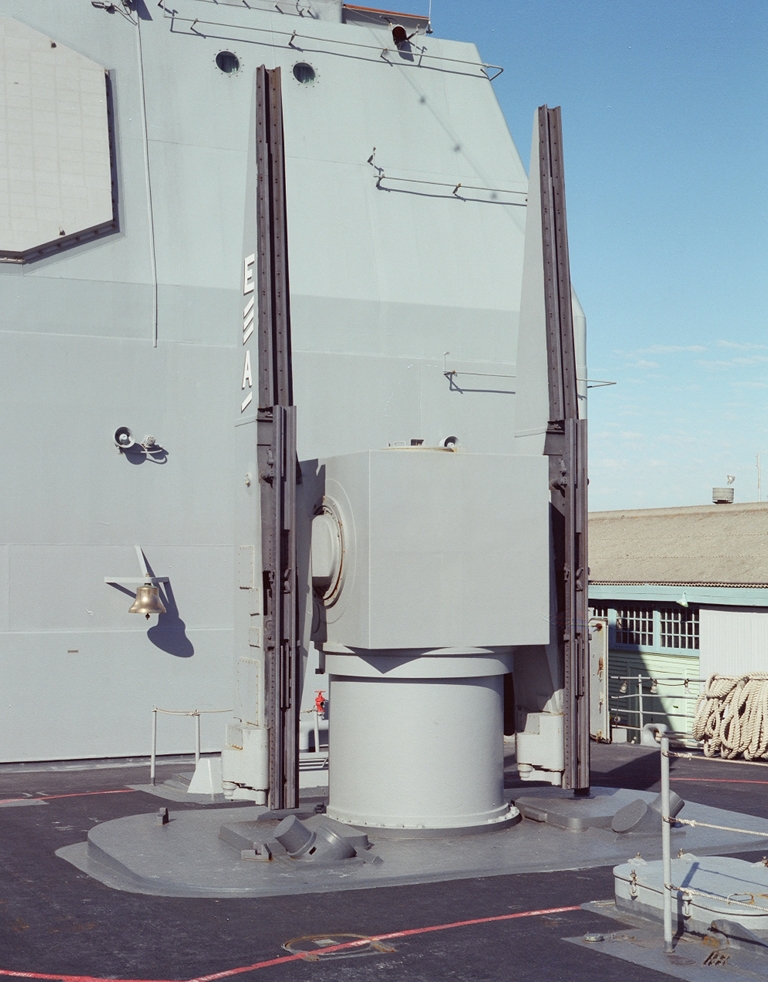

Above, below: CG-50 Valley Forge Mk.26
rail launcher for SM-2MR SAMs. Note above the forward pair of Raytheon/RCA
AN/SPG-62 tracking and CW illumination radars for SM-2MR SAM terminal
guidance, above the bridge (Author using M645/1000S Sekor C 80 mm).

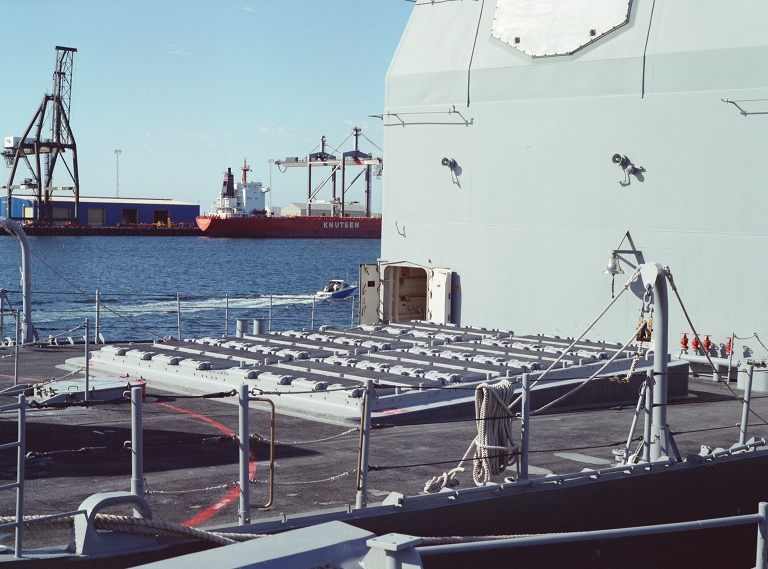

CG-65 Chosin Ticonderoga class cruiser
forward deck Mk.41 VLS installation (Author using M645/1000S Sekor C 80 mm).
CG-65 Chosin Ticonderoga class cruiser aft
Raytheon/RCA
AN/SPG-62
tracking
and
CW
illumination radars for SM-2MR SAM terminal
guidance (Author
using
M645/1000S
Sekor
C
80 mm).
|
CVW-15 |
Grumman F-14A Tomcat / VF-51 Screaming Eagles |

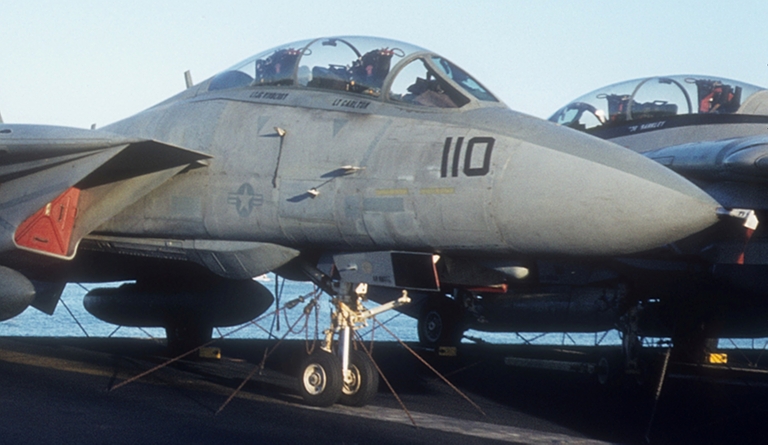

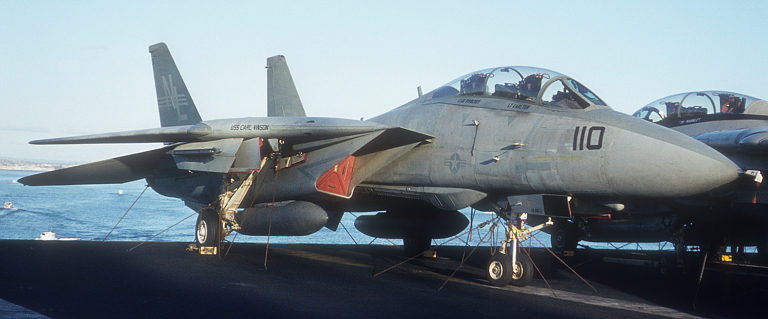

Grumman
F-14A
Tomcat
of
VF-51
in
low
visibility
camouflage.
Grumman
F-14A
Tomcat
of
VF-51
in
low visibility
camouflage.
|
Grumman F-14A Tomcat / VF-111 Sundowners |
Grumman
F-14A
Tomcat
#204 of
VF-111
in low visibility camouflage, also with full colour unit livery.

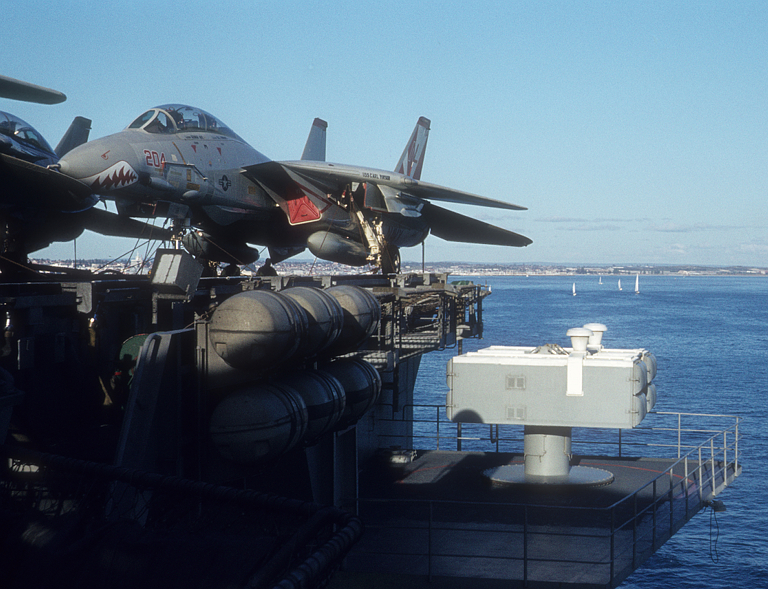

To the right, a RIM-7 Sea Sparrow semi-active homing SAM launcher for
terminal ASCM defence.

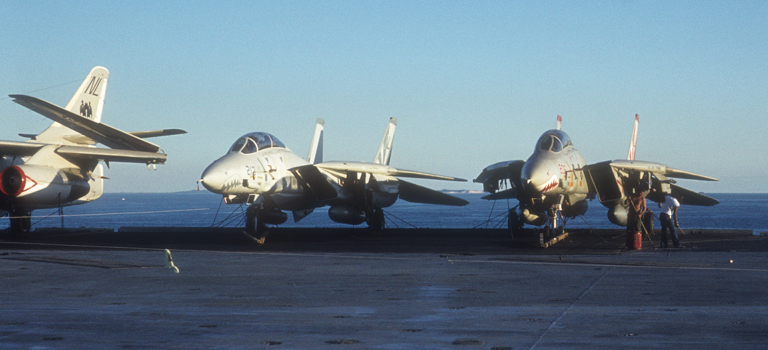

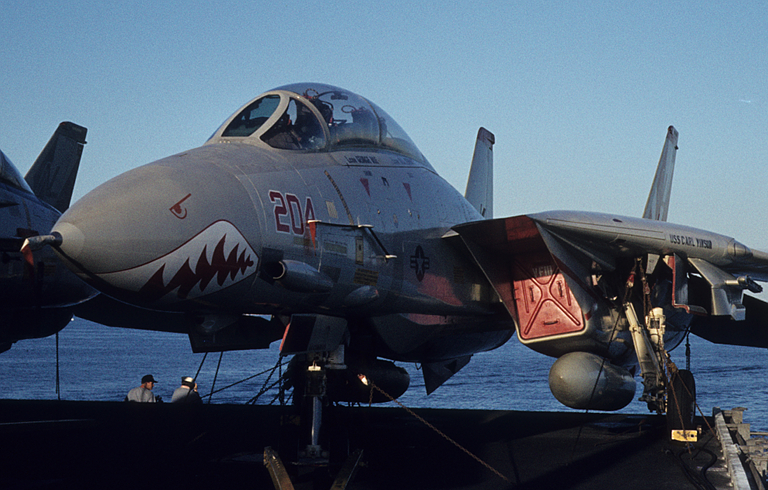

Above, below: Grumman F-14A Tomcat #204 of VF-111 in detail. Grumman
F-14A
Tomcats
of
VF-111
in
low
visibility
camouflage,
one
in
low contrast, the other in full
colour livery. To the right, the tail of a VQ-1 EA-3B Skywarrior.

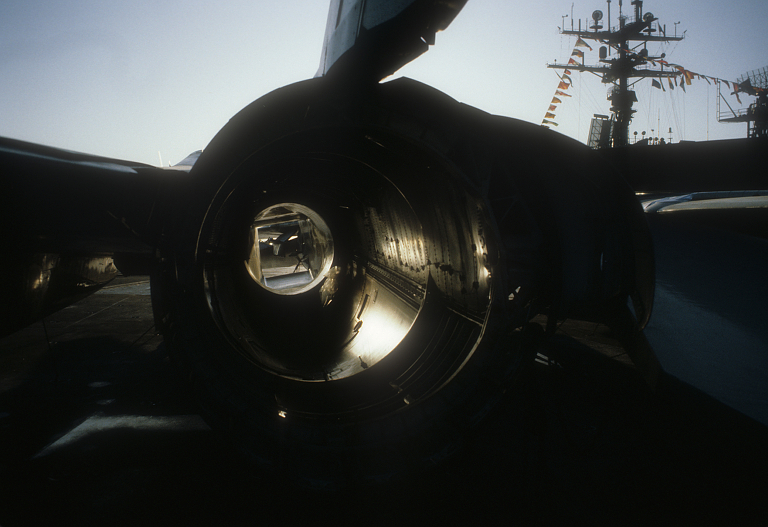

Aft view of Grumman F-14A Tomcat of VF-111 in low visibility camouflage. |
Lockheed S-3A Viking / VS-29 Vikings |

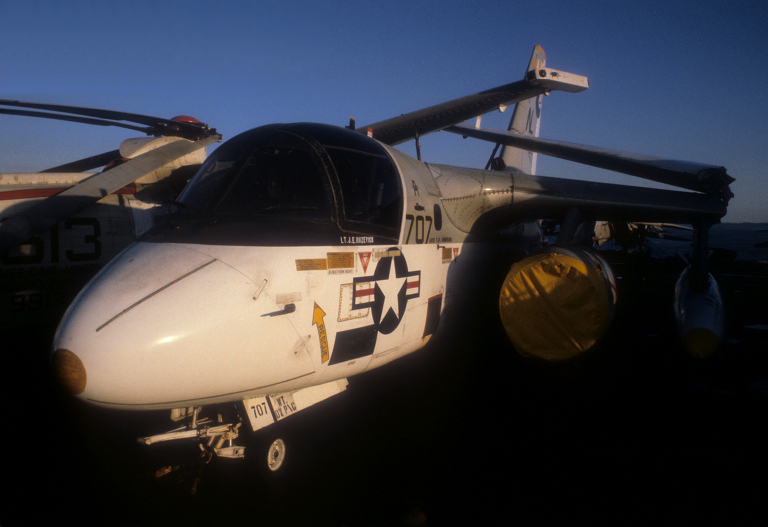

Lockheed
S-3A
Viking
ASW
aircraft
of
VS-29.
|
Grumman E-2C Hawkeye / VAW-114 Hawks |

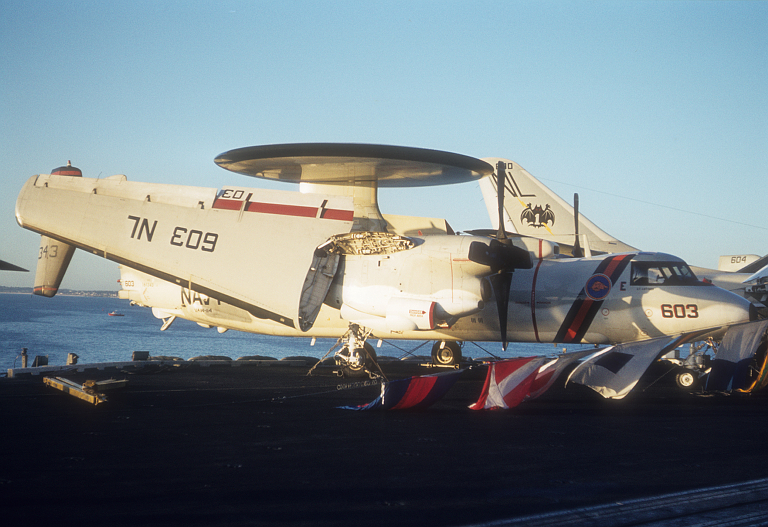

The Grumman E-2C Hawkeye is a critical ISR asset for the CVBG. |
Douglas EA-3B Skywarrior / VQ-1 World Watchers |

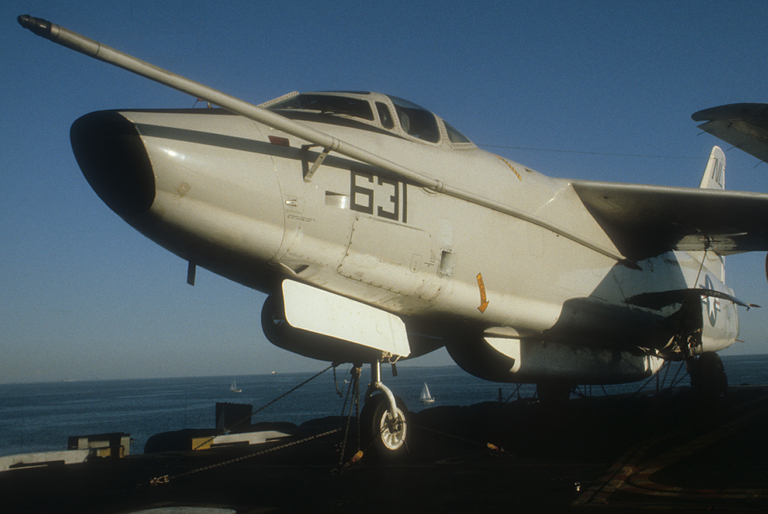

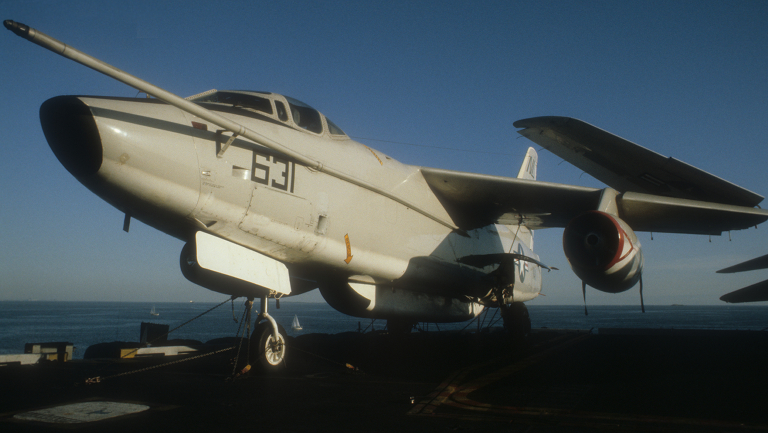

Above, below, an EA-3B Skywarrior ELINT
aircraft of VQ-1. These highly capable reconnaissance aircraft were
retired after the fall of the Soviet Union.
|
LTV A-7E Corsair II / VA-22 Fighting Redcocks |

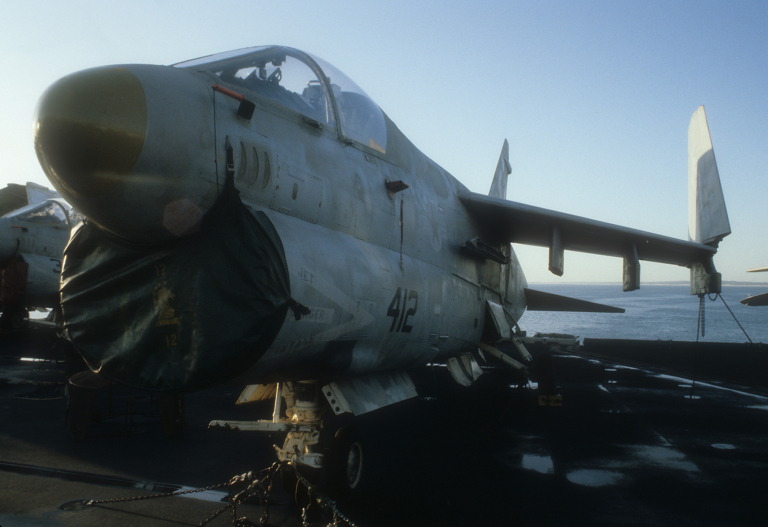

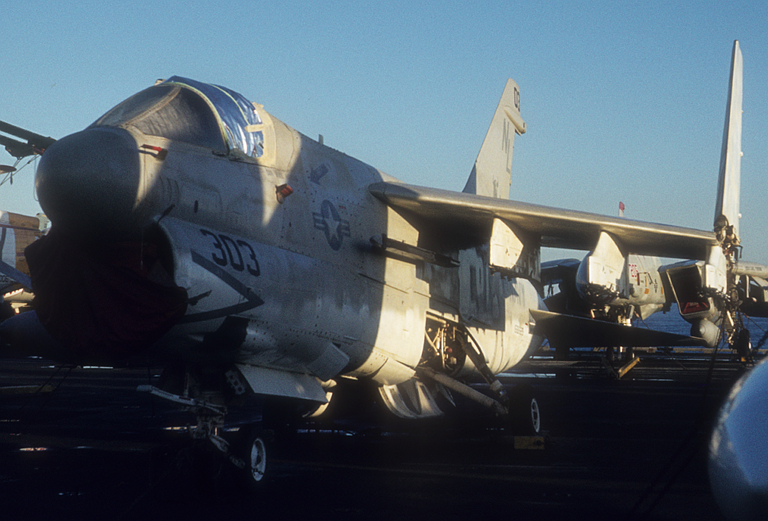

Above, below, a pair of VA-22 LTV A-7E
Corsair II aircraft in low contrast camouflage. The upper is in two
tone classic camouflage, the lower in newer wraparound single
grey.
|
Sikorsky SH-3H Sea King / HS-4 Black Knights |
A
Sikorsky SH-3H Sea King of HS-4 stowed.
|
|

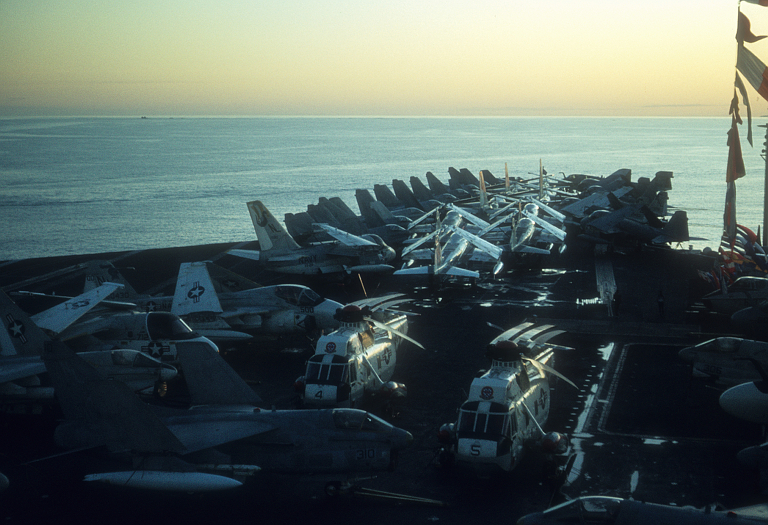

Sunset on the flight deck. |
|
|
Imagery Sources: © 1984 - 2010 Carlo Kopp; US Navy, US DoD |
|
|||||||||||||
